MOTOROLA DP4401 / DP4801
Walkie-Talkie Digital ATEX

MOTOROLA DP4401EX

Features

  • DP4401EX: 32 channels.
    DP4801EX: 1.000 channels, full-colour, 5-line display
    adn full keyboard.
  • DP4401EX: 3 Programmable buttons.
    DP4801EX: 5 Programmable buttons.
  • Analogue Mode Compatible.
  • Day/Night Mode on Display.
  • integrated GPS
  • Emergency Button.
  • VOX capacity.
  • Integrated voice and data.
  • Man Down.
  • IP67 rated.
  • PTT ID.
Package includes:
  • Battery.
  • Charger.
  • Belt clip.
  • User manual

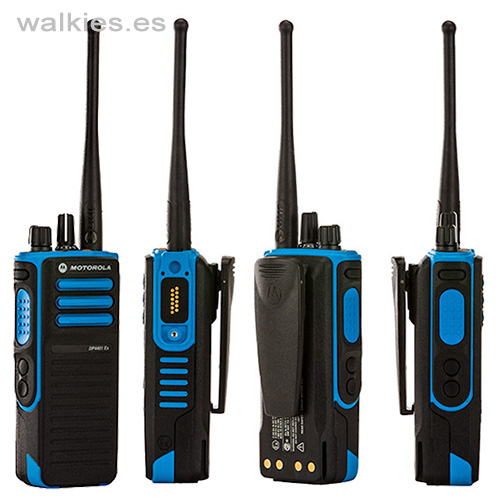

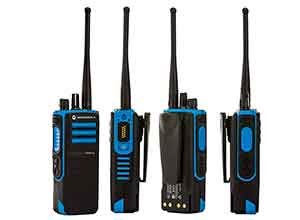

Walkie-Talkie MOTOROLA DP4401EX

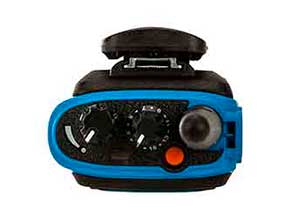

Portátil MOTOROLA Serie DP4000

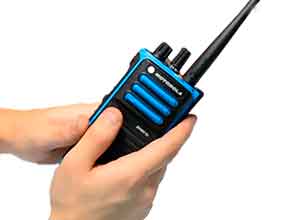

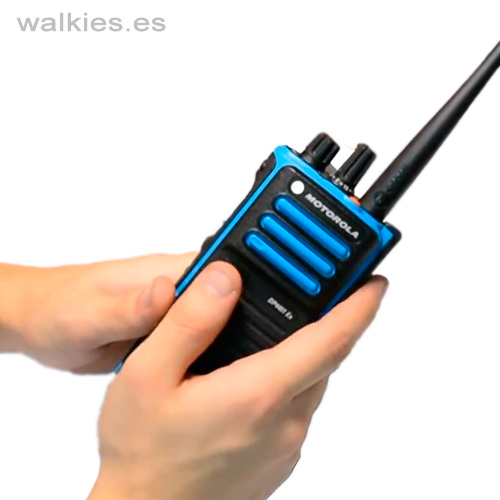

Portátil MOTOROLA DP4401EX
GET QUOTE
MOTOROLA SERIE DP4000 ATEX

MOTOROLA DP4401EX - DP4801EX ATEX

These high-performing portables have the highest ATEX gas explosion group rating. Ideal for hazardous work with loud noise, long shifts, rough weather and dangerous conditions including combustible dust, explosive chemicals, gas leaks.

DP4401Ex
Rugged, easy to use, non-display model.

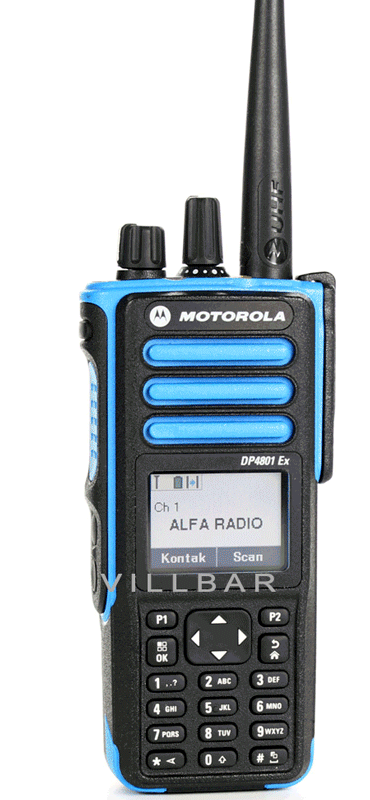

DP4 8 01Ex
Adds a full keypad and large colour display for access to advanced features like texting and caller ID.

Easy to use
Ergonomically designed for ease of use, with customisable buttons and an intuitive user interface.

Exceptional Audio
Hear and speak clearly in loud environments, negate background noise from heavy equipment, engines and trucks.

Keep Crews communicating, Every Where
MOTOTRBO's IP Site Connect uses the Internet to extend coverage to workers anywhere in the world and scalable, single-site Capacity Plus expands capacity to over 1,000 users. Linked Capacity Plus combines the high user-density call management of Capacity Plus with the wide area coverage of IP Site Connect to connect crews at various locations affordably..

Built to last.
Meets IP67 specifications to withstand dust and immersion in 1 meter of water for 30 minutes.

ACCESSORIES MOTOROLA

>

MICROPHONES AND HEADPHONES

PMLN5003A

PMLN6531A

Lightweight headset with micro PTT and vox.

PMLN5727A

PMLN5727A

Swivel Earpiece with in-line microphone and push-to-talk.

PMLN4294D

PMLN4294D

Black Earbud with Push to Talk.

PMLN5001A

PMLN5001A

D Loop Earpiece with Microphone PTT - Standard Two-Prong.

PMLN5975A

PMLN5975A

Auricular giratorio Mag One con micrófono y PTT.

PMLN5101

PMLN5101

IMPRES Temple Transducer with In Line PTT.

PMLN5973

PMLN5973

Mag One Ear Receiver with inline Mic & PTT.

WADN4190

WADN4190

3.5mm Ear Receiver with Coiled Cord.

PMLN4620

PMLN4620

3.5mm Listen Only Earpiece with Coilder Cord and D-Ring Ear Hanger.

PMLN5979

PMLN5979

Headset Mag One breeze headset with boom mic & PTT.

PMLN5102

PMLN5102

Ultra Lightweight Intrinsically Safe Headset.

NTN2572

NTN2572

Mission Critical - Operations Critical Replacement Wireless Earpiece.

GMTN6356

GMTN6356

Auricular inalámbrico Bluetooth. Requiere el adaptador (PMLN5712)

NNTN8191

NNTN8191

Wireless PTT compact and lightweight, yet features a large, easy-to-access PTT button. Bluetooth.

PMLN5712

PMLN5712

Bluetooth Wireless Adapte.

PMMN4024

PMMN4024

Remote speaker microphone with 3.5mm. jack.

PMMN4040A

PMMN4040A

Small RSM windporting with push to talk switch and swivel clip, Submersible IP57.

PMMN4046A

PMMN4046A

Large RSM (non-Impres) with push to talk switch, volume control, emergency button, programmable button and swivel clip, Submersible IP57.

>

BATTERIES AND CHARGERS

NNTN8129

NNTN8129

Battery Motorola IMPRES Li-ion 2.350 mAh. submersible battery, IP57.

PMNN4409

PMNN4409

Battery Motorola IMPRES Li-Ion 2.250 mAh high capacity submersible battery IP57.

PMNN4448

PMNN4448

IMPRES Li-Ion 2.800mAh CE battery.

WPLN4255

WPLN4255

IMPRES Single Unit Charger.

RLN6433

RLN6433

Travel Charger with VPA adaptor.

WPLN4212

WPLN4212

Multi unit charger insert.

WPLN4219

WPLN4219

IMPRES Multi Unit Charger with display.

>

ANTENAS UHF / VHF

PMAE4079

PMAE4079

UHF/GPS Combination Stubby Antenna. 403 - 527 MHz.

PMAD4117A

PMAD4117A

VHF/GPS combination helical antenna for the 136-155 MHz.

PMAE4002A

PMAE4002A

Antenna, 9cm. UHF 403-433 Mhz.

PMAD4119A

PMAD4119A

VHF/GPS combination stubby antenna for the 136-148 MHz. range.

PMAE4070

PMAE4070

UHF/GPS combination stubby antenna for the 440-490 MHz. range.

MAE4071

PMAE4071

UHF/GPS combination stubby antenna for the 470-512 MHz. range.

PMAE4120

PMAE4120

VHF/GPS combination stubby antenna for the 146-160 MHz.

>

OTHER ACCESSORIES

PMLN7008

PMLN7008

Belt Clip for DP2000, DP2400 & DP2600.

RLN4570

RLN4570

Break-A-Way Chest Pack.

HLN9701

HLN9701

Nylon Case with Belt Loop with NiCd, NiMH, and Li-ion batteries.

TECHNICAL SPECIFICATIONS

Specifications
Frequencies VHF: 136-174 MHz.
UHF1: 403-470 MHz.
Power RF DP4401EX: 1W.
DP4801EX: 1w.
Channel Capacity DP4401EX: 32
DP4801EX: 1.000
Dimensions with standard battery DP4401EX: 138,5 x 56,7 x 37,8 mm.
DP4801EX: 138,5 x 56,7 x 39,8 mm.
With standard battery DP4401EX: 455.5g.
DP4801EX: 482.5g..
Battery Life 11horas.
Power Supply 7,5V
Operating temperature: -20°C +55°C
Sealing IP67

ATEX
Gas II 2G Ex ib IIC T4 Gb IECEx: Ex ib IIC T4 Gb
Powder II 2D Ex ib IIIC T130 °C Db IECEx: Ex ib IIIC T130°C Db
mining industry I M2 Ex ib I Mb IECEx: Ex ib I Mb
Receiver
Channel Spacing 12,5 o 20/25 kHz.
Sensitivity (a 20dB SINAD) EN 0,50 μV típica.
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB a 12,5 kHz.
70 dB a 20/25 kHz.
Spurious Response Rejectio 70 dB.
Conducted Spurious Emissions -57 dBm < 1 GHz.
-47 dBm < 1GHz.
Audio Output: 500 mW.
Audio Distortion 3%

Transmitter
Frequency Stability +/-2,5 ppm.
Power RF 1W .
Modulation Limiting +/-2,5 a 12,5 kHz, +/-4,0 a 20 kHz, +/-5,0 a 25 kHz
Adjacent Channel Power -60 dB a 12,5 kHz.
-70 dB a 20 kHz.
