KENWOOD TK-D240 / TK-D340
Digital Walkie Talkie DMR

KENWOOD TK-D340

Features

  • Max. 32 ch in 2 zones (16 ch per zone).
  • TK-D240 VHF.
  • TK-D340 UHF.
  • Double Capacity (2 Slots TDMA).
  • Digital and Analog operation.
  • Direct Mode Double Slot.
  • Audio output power 1W.
  • Password protection.
  • Call Alert LED.
  • Keypad lock.
  • Signaling QT/DQT, FleetSync.
  • IP54/55 Rated.
  • Compact Design - 35mm.
  • Call Interrupt.
  • PC Programming.
Package includes:
  • Antenna.
  • Battery Li-Ion.
  • Charger.
  • Belt Clip.

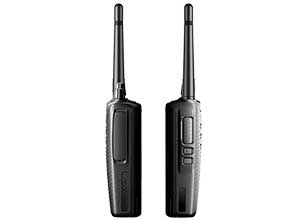

KENWOOD DMR

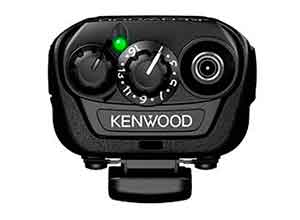

KENWOOD DMR TK-D340

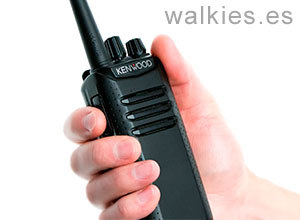

KENWOOD DMR TK-D240
GET QUOTE
Video KENWOOD DMR TK-D340

KENWOOD TK-D240 / TK-D340 Digital Walkie Talkie DMR

The TK-D240 / D340 portable ergonomic design features most used in industry and security. These portable belongs to the category DMR Tier II, it has 2 standard slots to double the channel capacity of 12.5 kHz. besides being resistant and meet MIL-STD (military standards Americans) and IP54 / 55.

The TK-D240 / 340 laptops deliver excellent audio, compatibility with (DMR) analogue and digital systems to function well directly without using repeater.

ACCESSORIES KENWOOD

>

MICROPHONES AND HEADPHONES

KENWOOD EMC-11W - Clip microphone with Earphone and PTT.

EMC-11W

Clip microphone with Earphone and PTT.

EMC-12W

EMC-12W

Clip microphone with Earphone and PTT (VOX ready).

KHS-1

KHS-1

Lightweight Headset with VOX & PTT.

KHS-10-OH

KHS-10-OH

Noise Reduction Headset (overhead) (NRR)=24dB.

KHS-21

KHS-21

Lightweight Headset - for VOX operation.

KHS-7

KHS-7

Single Muff Headset with Boom Microphone.

KHS-7A

KHS-7A

Single Muff Headset with Boom Microphone & PTT.

KHS-8BL

KHS-8BL

Two-wire Palm Microphone with Earpiece.

KHS-9BL

KHS-9BL

Three-wire Lapel Microphone with Earpiece.

KMC-21

KMC-21

Slim-Line Speaker Microphone With 2.5mm socket for earpiece.

KMC-45

KMC-45

Heavy Duty Speaker/Microphone With 2.5mm socket for earpiece.

>

BATTERIES AND CHARGERS

KNB-63L

KNB-63L

Li-Ion Battery - 1130 mAh.

KENWOOD KNB-65L

KNB-65L

Li-Ion Battery - 1.520 mAh.

BT-16

BT-16

Dry-cell case for Takes 6 x AAA (LR03) Alkaline batteries.

KSC-31

KSC-31

Battery Charger - Single-way Rapid.

KSC-235E

KSC-35E

Battery Charger - Single-way Rapid.

KSC-256

KSC-256

Battery Charger - Rapid 6-Way (2-pin Euro plug).

KMB-30

KMB-30

Wall-mount Bracket for 6-Way Chargers.

>

OTHER ACCESSORIES

KPG-22U

KPG-22U

USB Programming Cable - Twin-jack Connector.

KPG-173DM

KPG-173DM

Programming software (Windows).

KENWOOD KLH-197NC

KLH-197NC

Nylon Case for TK-3501

KENWOOD KBH-18

KBH-18

Belt Clip.

KWR-1

KWR-1

Water Resistant Bag.

TECHNICAL SPECIFICATIONS

Technical Specifications
Frequency Range TK-D240: VHF 136 - 174 MHz.
TK-D340: UHF 400 - 470 MHz.
TK-D340: UHF 450 - 520 MHz.
Number of Channels 32
Number of Zones 2
Channel Spacing Analog: 12.5/25 kHz.
Digital: 15.5 kHz.
Channel Frequency Spread 70 MHz.
Channel Spacing Analogue 12.5/25 kHz.
Channel Spacing Digital 12.5 kHz.
Antenna Impedance 50 Ohm
Battery Life aprox KNB-57L: 11.5 h
KNB-56N: 8.5 h.
KNB-55L: aprox 8.5 h.
Frequency Stability ±2.0/±1.0 ppm.
Operating Temperature Range -30 °C to + 60 °C
Voltaje operativo 7.5 V DC ± 20%
Dimensions 54 x 122 x 33.7 mm.
Weight w/KNB-45L: 281g.
w/KNB-69L: 305g.
w/KNB-53N: 351g.
Receiver Specifications
Adjacent Channel Selectivity (Analogue) 65 dB.
Audio Output 1 W/12 Ω (Altavoz interno)
Intermodulation 70 dB (±50/100 kHz.)
Sensitivity - EIA 12 dB SINAD 25KHz/20KHz/12.5KHz = 0.28 microvolt/0.28 microvolt/0.32 microvolt
Sensibilidad (Analógico) - EN 20 dB SINAD 25KHz/20KHz/12.5KHz = -3dB microvolt/-3dB microvolt/-1 dB microvolt
Sensibiildad (Digital) Digital 1 % BER - 0.45 μV.
Digital 5 % BER - .25 μV.
Rechazo de respuesta espurea 75 dB

Transmitter Specifications
RF Power Output VHF - 5 W / 1 W.
UHF - 4 W / 1 W.
Spurious Response 70 dB.
FM Hum & Noise 40 dB.
Audio Distortion Less than 10%
Emisión de designación 16K0F3E, 14K0F2D, 14K0F3E, 12K0F2D, 8K50F3E, 7K50F2D, 7K60FXD, 7K60FXE
