WALKIE TALKIE KENWOOD TK-3501
Portable radio - License Free PMR446

KENWOOD TK-3501

Features:

  • 16 Channels pre-programmed.
  • Built-in VOX function.
  • Key Lock function .
  • Preset 10 Calling Alert .
  • Proceed Tone/PTT Release Tone.
  • All Reset Mode.
  • Busy Channel Lock Out.

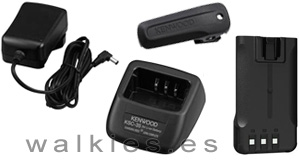

Package includes:
  • Li-Ion Battery.
  • Rapid Charger.
  • Belt Clip.
  • Antena.
tk-3501

KENWOOD TK-3501 License Free PMR446

The TK-3501. An easy-to-use, license-free PMR446 UHF FM transceiver. Thin, lightweight and durable. Compliant with IP54 and 11 US MIL-STD standards.

Ease of use
Simple and license-free operation in an all-in-one package ready for immediate use.

Thin and lightweight
Comes with a KNB-63L battery (W×H×D): 54.0×117×25.5mm; weight: 210g.

Durability
IP54 and US MIL-STD 810 C, D, E, F, and G standard-compliant.

User-friendly with no need for a license

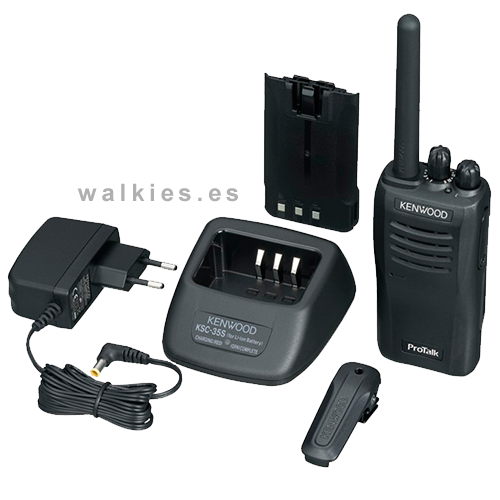

The TK-3501 is a license-free PMR446 UHF transceiver. The ready-to-use package contains the transceiver, a rechargeable battery, battery charger and belt clip.

Thin and lightweight

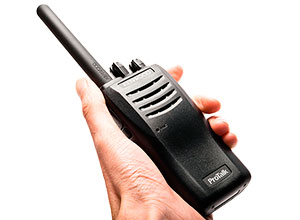

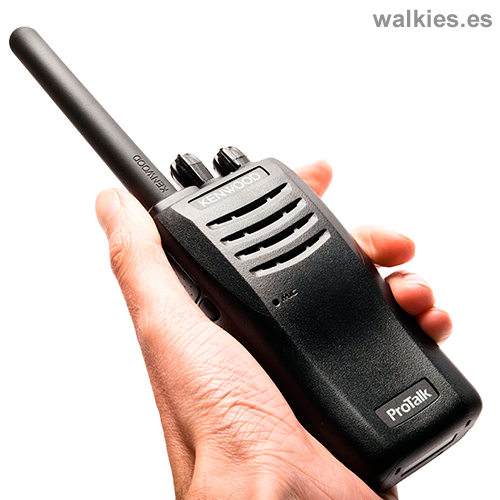

The lightweight TK-3501 is just 25.5mm. thick and fits perfectly in the palm of your hand. Equipped with the standard KNB-63L battery, it weighs in at only 210g.

IP54 and US MIL-STD 810 C, D, E, F, and G standard-compliant
The TK-3501 meets IP54 dust and water intrusion standards as well as 11 US MIL-STD 810 C, D, E, F, and G standards. Its robust durability is able to withstand tough use in the field.

High-quality audio, powerful output
Drawing on Kenwood's expertise as an audio specialist, the TK-3501 others crisp, clear audio resulting in dependable communications even in harsh operating conditions. The BTL audio amplifier combined with the large internal speaker delivers 1.5W speaker output and reliable audio even in noisy environments. Cloning is done with radio-to-radio cloning cable or through the Multi-Unit Charger.

ACCESSORIES KENWOOD

>

MICROPHONES AND HEADPHONES

KENWOOD EMC-11W - Clip microphone with Earphone and PTT.

EMC-11W

Clip microphone with Earphone and PTT.

EMC-12W

EMC-12W

Clip microphone with Earphone and PTT (VOX ready).

KHS-1

KHS-1

Lightweight Headset with VOX & PTT.

KHS-10-OH

KHS-10-OH

Noise Reduction Headset (overhead) (NRR)=24dB.

KHS-21

KHS-21

Lightweight Headset - for VOX operation.

KHS-7

KHS-7

Single Muff Headset with Boom Microphone.

KHS-7A

KHS-7A

Single Muff Headset with Boom Microphone & PTT.

KHS-8BL

KHS-8BL

Two-wire Palm Microphone with Earpiece.

KHS-9BL

KHS-9BL

Three-wire Lapel Microphone with Earpiece.

KMC-21

KMC-21

Slim-Line Speaker Microphone With 2.5mm socket for earpiece.

KMC-45

KMC-45

Heavy Duty Speaker/Microphone With 2.5mm socket for earpiece.

>

BATTERIES AND CHARGERS

KNB-63L

KNB-63L

Li-Ion Battery - 1130 mAh.

KENWOOD KNB-65L

KNB-65L

Li-Ion Battery - 1.520 mAh.

BT-16

BT-16

Dry-cell case for Takes 6 x AAA (LR03) Alkaline batteries.

KSC-31

KSC-31

Battery Charger - Single-way Rapid.

KSC-235E

KSC-35E

Battery Charger - Single-way Rapid.

KSC-256

KSC-256

Battery Charger - Rapid 6-Way (2-pin Euro plug).

KMB-30

KMB-30

Wall-mount Bracket for 6-Way Chargers.

>

OTHER ACCESSORIES

KPG-22U

KPG-22U

USB Programming Cable - Twin-jack Connector.

KPG-173DM

KPG-173DM

Programming software (Windows).

KENWOOD KLH-197NC

KLH-197NC

Nylon Case for TK-3501

KENWOOD KBH-18

KBH-18

Belt Clip.

KWR-1

KWR-1

Water Resistant Bag.

DATA SHEET

General Specifications
Frequency Range PMR446 (446.00 - 446.1 MHz)
RF Power Output: 0.5 W (standard).
Audio Output: 1500 mW.
Number of hannels: 16
Channel Bandwidth 12.5 kHz.
VOX Internal VOX with 10-level Sensitivity Adjustment
Dimensions (W×H×D): KNB-63L - 54×117×25.5mm.
KNB-65L - 54×117×27.5mm.
Weight KNB-63L - 210g.
KNB-65L - 230g.
Battery Life Battery Save: OFF/ON KNB-63L: 14 - 20 h.
KNB-65L: 18 - 26h.
Operating Voltage 7.5V DC ± 20%
Sealing IP54
